What Is Wire EDM Machining? A Complete Guide
Wire EDM machining is a high precision manufacturing process that uses a thin electrically charged wire to cut through conductive metals with exceptional accuracy. It is widely used in tool and die manufacturing, aerospace components, automotive parts, mold production, and other industries where tight tolerances and complex geometries are critical.
In modern manufacturing across Ontario, wire EDM machining plays an essential role in producing intricate components that conventional cutting methods struggle to achieve.
This complete guide explains how wire EDM machining works, its advantages, applications, materials, and why it remains one of the most trusted precision machining processes today.
What Is Wire EDM Machining?
Wire EDM stands for Wire Electrical Discharge Machining. It is a non contact thermal cutting process that removes material using controlled electrical sparks rather than traditional cutting tools.

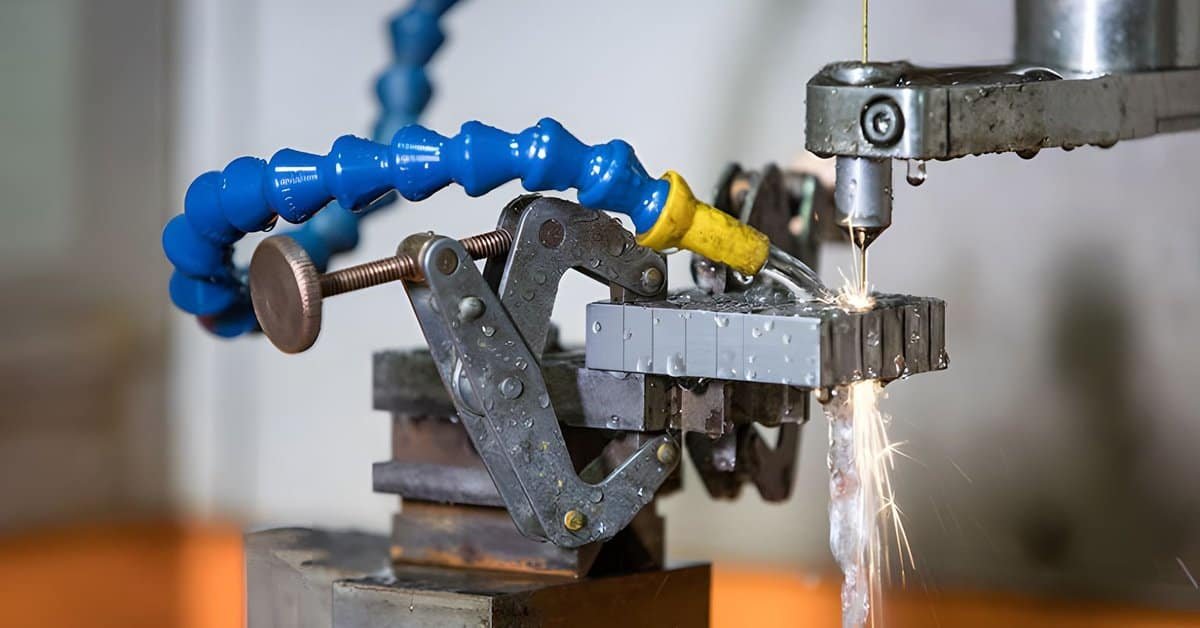

Instead of using blades or rotating cutters, wire EDM uses a thin brass or copper wire as an electrode. When electrical current passes between the wire and the workpiece, it creates rapid spark discharges. These sparks generate intense heat that melts and vaporizes tiny portions of metal along a programmed cutting path.
Because the wire never physically touches the material, there is no mechanical force applied during cutting. This makes wire EDM machining ideal for delicate components, hardened materials, and intricate shapes that require extreme precision.
How Wire EDM Machining Works
The wire EDM process relies on advanced CNC controls and specialized equipment. The system typically includes:
- A thin wire electrode, usually brass
• A power supply that generates precise electrical pulses
• A dielectric fluid, typically deionized water, to cool and flush debris
• A CNC controlled positioning system
During operation, the wire moves along a pre programmed path. Electrical sparks form between the wire and the workpiece, eroding the material in extremely small increments. The dielectric fluid cools the area and removes microscopic particles created during erosion.
Since there is no direct tool pressure, the process produces minimal distortion. This makes wire EDM machining particularly effective for thin sections, sharp internal corners, and high tolerance industrial components.
Key Advantages of Wire EDM Machining
Wire EDM machining offers several distinct benefits that make it a preferred solution for precision manufacturing in Ontario. From accuracy to material versatility, this technology provides capabilities that conventional machining cannot easily match.
1. Exceptional Precision and Tight Tolerances
One of the most significant advantages of wire EDM machining is its ability to achieve extremely tight tolerances, often within plus or minus 0.0001 inches. This level of precision is essential for industries such as aerospace, automotive tooling, and medical device manufacturing where even minor deviations can impact performance.
The CNC controlled process ensures consistent repeatability, making it ideal for both prototypes and production runs.
2. Ability to Cut Hardened Materials
Unlike traditional milling or turning, wire EDM can cut hardened steel, titanium, carbide, and other difficult materials without requiring additional heat treatment afterward. Since the process relies on electrical discharge rather than mechanical force, it maintains material integrity while delivering clean cuts.
This makes wire EDM machining highly efficient for tool and die manufacturing in Ontario.
3. Complex Shapes and Intricate Details
Wire EDM excels at producing sharp internal corners, narrow slots, fine features, and complex geometries. Traditional cutting tools often struggle to create perfectly square internal corners due to tool radius limitations. Wire EDM eliminates this issue by using a thin wire that can navigate detailed paths with precision.
This capability is especially valuable in mold making, extrusion dies, and stamping die production.
4. Superior Surface Finish
Another key advantage of wire EDM machining is the high quality surface finish it produces. In many cases, parts require little to no secondary finishing. This reduces overall production time and lowers manufacturing costs.
Multiple skim passes can further enhance surface quality when ultra smooth finishes are required.
5. Minimal Mechanical Stress
Because there is no direct contact between the wire and the workpiece, the process generates virtually no cutting pressure. This eliminates the risk of tool deflection, distortion, or stress on delicate components.
For thin or fragile parts, this advantage makes wire EDM machining a safer and more reliable solution.
Conclusion for Key Advantages
Overall, the key advantages of wire EDM machining make it an indispensable process for precision manufacturing. Its ability to deliver tight tolerances, cut hardened metals, produce complex geometries, and minimize stress ensures consistent quality across a wide range of industrial applications.
For manufacturers seeking accuracy, efficiency, and reliability, wire EDM remains one of the most advanced machining solutions available.
Common Applications of Wire EDM Machining
Wire EDM machining is widely used in industries that demand high precision and durability. Common applications include:
- Tool and die manufacturing
• Mold production
• Aerospace components
• Automotive precision parts
• Medical device components
• Prototype development
• Extrusion and stamping dies
In Ontario’s competitive manufacturing sector, businesses rely on wire EDM to maintain strict quality standards and meet demanding engineering specifications.
Materials Suitable for Wire EDM
Wire EDM machining can cut any electrically conductive material, including:
- Tool steel
• Stainless steel
• Aluminum
• Copper
• Brass
• Titanium
• Carbide
• High performance alloys
This material versatility makes wire EDM suitable for a wide range of industrial and commercial projects.
Wire EDM vs Traditional CNC Machining
Both wire EDM and conventional CNC machining play important roles in manufacturing. However, they serve different purposes.
Traditional CNC machining uses mechanical cutting tools to remove material. It is efficient for general fabrication and high volume production but may struggle with extremely tight tolerances or hardened materials.
Wire EDM machining is the preferred choice when:
- Tight tolerances are critical
• The material is already hardened
• Intricate internal corners are required
• Mechanical stress must be minimized
In many projects, combining CNC machining with wire EDM provides the most efficient and cost effective solution.
Final Thoughts
Wire EDM machining is one of the most precise and versatile manufacturing processes used in modern industry. Its ability to cut hardened metals, create complex geometries, and maintain extremely tight tolerances makes it essential for applications that demand accuracy, durability, and consistent performance.
For manufacturers across Ontario, wire EDM delivers reliable results for tool and die production, aerospace components, automotive parts, and other high precision projects. At Olympic Tool and Die, we provide advanced wire EDM machining services backed by technical expertise and strict quality standards.
Contact our team today to discuss your specifications and receive a detailed quote.
FAQs
What is wire EDM machining used for?
Wire EDM machining is used for producing precision components with tight tolerances and complex shapes. It is commonly applied in tool and die manufacturing, aerospace parts, automotive components, mold production, and industrial equipment fabrication in Ontario.
How accurate is wire EDM machining?
Wire EDM machining can achieve tolerances as tight as plus or minus 0.0001 inches. This high level of accuracy makes it ideal for precision engineering and critical industrial applications.
Can wire EDM cut hardened steel?
Yes. One of the main benefits of wire EDM machining is its ability to cut hardened steel and other tough alloys without causing material distortion or requiring additional heat treatment.
Is wire EDM cost effective?
While wire EDM machining may have higher initial setup costs compared to standard machining, it often reduces the need for secondary finishing and rework. For complex or high precision parts, it can be highly cost effective in the long term.
Why choose a professional wire EDM machining service in Ontario?
Working with an experienced Ontario based machining company ensures access to advanced equipment, skilled technicians, strict quality control, and reliable turnaround times. Professional wire EDM services help manufacturers maintain precision, efficiency, and production consistency.
